SIT65HVD233

Part NumberNumber of chanelsSupply Voltage(s) (V)Bus fault voltage (V)Common mode voltage (V)Signaling Rate(Mbps)Low power modeHBM ESD (kV)IEC 61000-4-2 contact (+/- kV)IsolatedOperating temperature range (C)Package GroupStatusDatesheetSIT23313.0~3.6 -36~36 -7~121Silent84No -40~125SOP8Sample
Number of views:
1380
Product serial number
Category
CAN
Quantity
-
+
1
Product description
Number of channels:
1
Source/V:
3.0~3.6
Tolerant voltage/V:
-36~36
Common mode range/V:
-7~12
Rate/Mbps:
1
Low power mode:
Silent
HBM ESD(kV):
12
Discharge contact/KV:
4
Quarantine:
No
Temperature/℃:
-40~125
Encapsulation:
SOP8/DIP8
State:
Active
Product:
CAN
CAN Power Supply/V:
3.0~3.6V
CAN Rate/Mbps:
1Mbps



Describe:

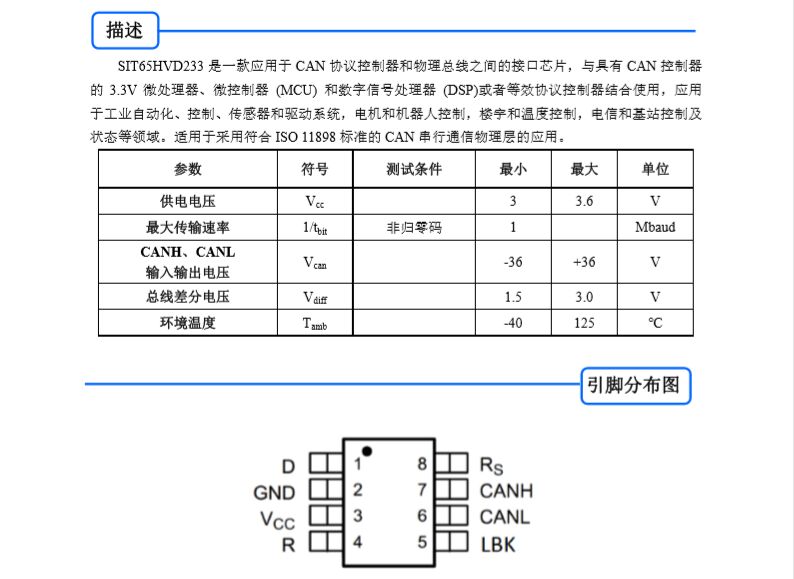

Sn65hvd233 is compatible with sit65hvd233. Sit65hvd233 is a can transceiver chip which is used between CAN protocol controller and physical bus, and has 3.3V microprocessor, MCU and digital signal processor with CAN controller (DSP) or equivalent protocol controller is used in industrial automation, control, sensor and drive system, motor and robot control, building and temperature control, telecommunication and base station control and status. It is suitable for the application of can serial communication physical layer according to ISO 11898 standard.
Sn65hvd233 pin to pin sit65hvd233 has the following features:
3.3V single power supply for operation;
Comply with ISO 11898-2 standard;
Bus pin ESD protection exceeds ± 12 kV human body model (HBM);
It is allowed to connect up to 120 nodes on one bus;
Adjustable driver switching time can improve radiation performance;
Low current standby mode: 650 μ a (typical value);
Design for data rate up to 1Mbps;
Thermal shutdown protection;
Open circuit fault safety design;
Hairless pulse power on and power down protection for hot swap applications.
